TIG Two Foil Decoilers Reactor Copper Foil Winding Machine 11kw

Brand Name : STT

Model Number : BRJ600-2-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Product name : copper foil winding machine

Usage : winding reactor coil

Al foil thickness : 0.3 ~ 3.0mm

Cu foil thickness : 0.2 ~ 2.0mm

Welding mode : TIG

Power : 11kw

Color : optional

Warranty period : 12 months

Contact Now

Two Foil Decoilers Reactor Copper Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is a professional equipment for reactor coils. With two foil decoilers, this kind of copper foil winding machine can wind one or two layers of both copper foil and aluminium foil . The copper foil winding machine is provided with two chucks to clamp iron core and the conductor foil can be wound on the iron core directly. With PLC and HMI, the copper foil winding machine features smooth running, easy operation, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

Two servo motors driving
Two chucks clamping iron core
Foil material ID 500mm
Maximum foil material OD 1000mm
Maximum winding speed 26rpm
Winding power 11kw
TIG welding unit
Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below and the foil winding machine can also be manufactured as requested.

Foil width:	250 ~ 600mm
Max. Finished Coil OD.:	Ø800mm
Conductor Strip Material:	Copper or Aluminum
Al Strip Thickness:	0.3 ~ 3.0 mm
Cu Strip Thickness:	0.2 ~ 2.0 mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650mm
Foil Decoiler Expanding Range:	Ø420 ~ 520mm
Max. Coil Weight:	1,000KG
Motor Power:	11kw
Max. Winding Speed:	26 rpm
Welding System:	TIG
Insulation Decoiler Number:	2 pcs
Insulation Decoiler Width:	650mm
Insulation Decoiler Shaft:	pneumatic open/close action
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User interface:	10 inches (254mm) touch screen
Counting Range:	0 ~ 9999.9

TIG Two Foil Decoilers Reactor Copper Foil Winding Machine 11kw

Fig 1: Copper foil winding machine BRJ600-2-2's front view

TIG Two Foil Decoilers Reactor Copper Foil Winding Machine 11kw

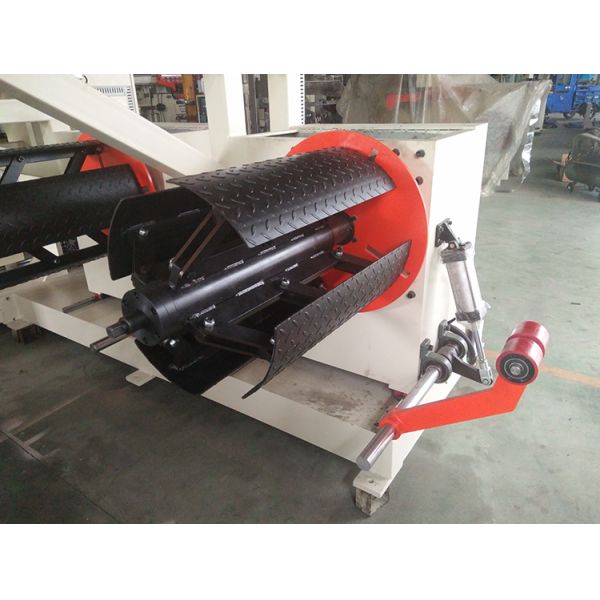

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler

TIG Two Foil Decoilers Reactor Copper Foil Winding Machine 11kw
