CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

Brand Name : STT

Model Number : ZZ300

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 90 days

Packaging Details : seaworthy packing

Machine name : transformer core cutting machine

Application : cutting silicon steel

Cutting width : 40 ~ 300mm

Cutting length : 150-2500mm

Cuttin peed : 180m/min

Power : 14kw

Color : as requested

Warranty : 12 months

Contact Now

CRGO Silicon Steel Cutter Transformer Core Cutting Machine For Making Core Limb

Description of transformer core cutting machine ZZ300

Transformer core cutting machine ZZ300 is a special cutter for cut silicon steel to make core limb of transformer core. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm. With different parameters input through touch screen, the transformer core cutting machine can be used to cut different shapes of the core limb, for instance, the equilateral core limb, eccentric center core limb and so on. The transformer core cutting machine features easy operation and high production effective etc.

Quick details of transformer core cutting machine ZZ300

  • Cutting thickness 0.2 ~ 0.35mm
  • Cutting width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw

Technical parameters of transformer core cutting machine ZZ300

Typical standard specifications of transformer core cutting machine ZZ300 are shown below, however, the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Cutting Thickness: 0.2~‌0.35mm
Cutting Width: 40~300mm
Cutting Length: 150~2500mm
Feeding Speed: 0~180m/min
Total Power: 14Kw

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

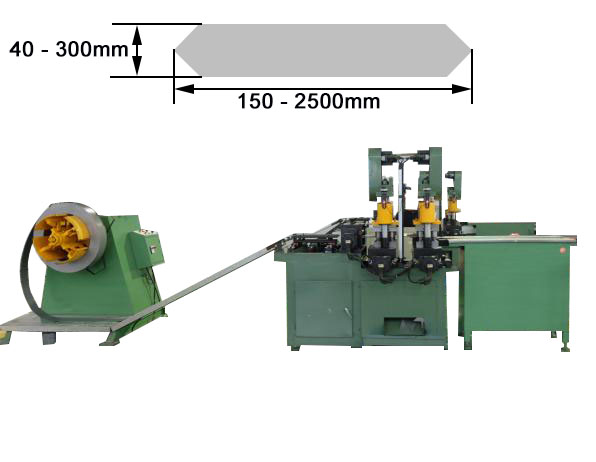

Fig 1: Transformer core cutting machine ZZ300's full view

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

Fig 2: Transformer core cutting machine ZZ300's cutter unit

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core LimbCRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core LimbCRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core LimbCRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core LimbCRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core LimbCRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb
