Semi Automatic Motor Coil Winding Machine With Copper Wire

Brand Name : STT

Model Number : MW350

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 20 days

Packaging Details : seaworthy packing

Machine name : motor coil winding machine

Machine color : as requested

Winding speed : 0- 200rpm

Flange diameter : 350mm

speed regulation : various stepless

Conductor : copper or aluminium wire

warranty : 12 months

Contact Now

Semi Automatic Motor Coil Winding Machine With Copper Wire

Description of motor coil winding machine MW350

Semi automatic motor coil winding machine MW350 is used for winding motor coil and other similar products. The motor coil winding machine is provided with strong main steel frame, flange to fix the mould for motor coil, foot pedal, counter, control board, winding motor, gear box and electrical cabinet etc. The motor coil winding machine features easy operation, high torque, and so on.

Main features of motor coil winding machine MW350

Slow starting, at the beginning of the rotating, the winding speed is very slow
Smooth running, during the machine running, it is very stable
Big power motor with 1.5kw
Easy operating, operating this winding machine is very easy and simple

Main parameters of motor coil winding machine MW350

Typical standard specifications of motor coil winding machine MW350 are shown below and the coil winding macihne can also be manufactured as requested.

Machine Height:	1400mm
Flange Diameter:	350mm (optional)
Rotating Speed:	0-250rpm
Counting Range:	0-9999.9
Max. Loading Capacity:	500KG
Main motor Power:	1.5KW
Machine colour:	customized
Machine Dimension(LxWxH):	900x700x1400mm

Semi Automatic Motor Coil Winding Machine With Copper Wire

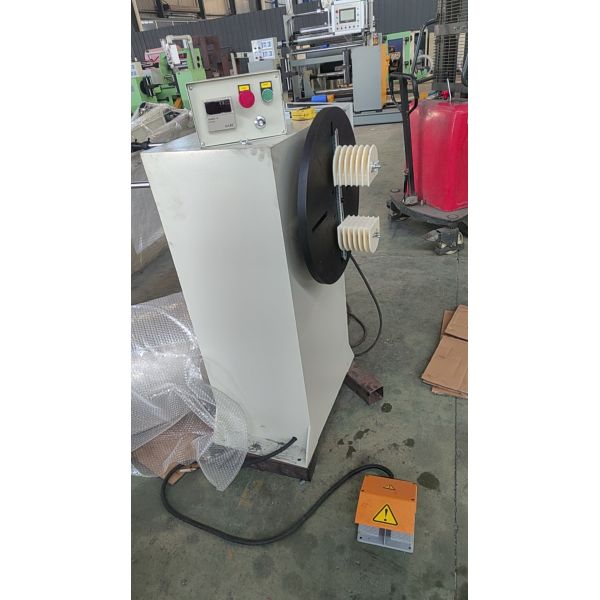

Fig 1: Motor coil winding machine MW350's full view

Semi Automatic Motor Coil Winding Machine With Copper Wire

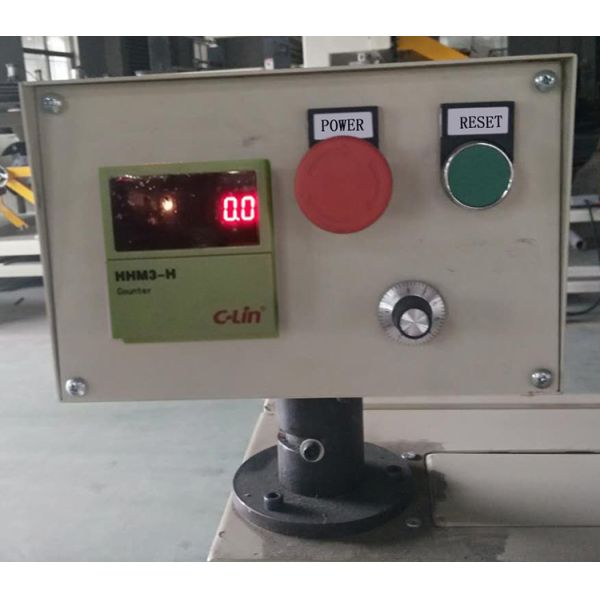

Fig 2: Motor coil winding machine MW350's controller
